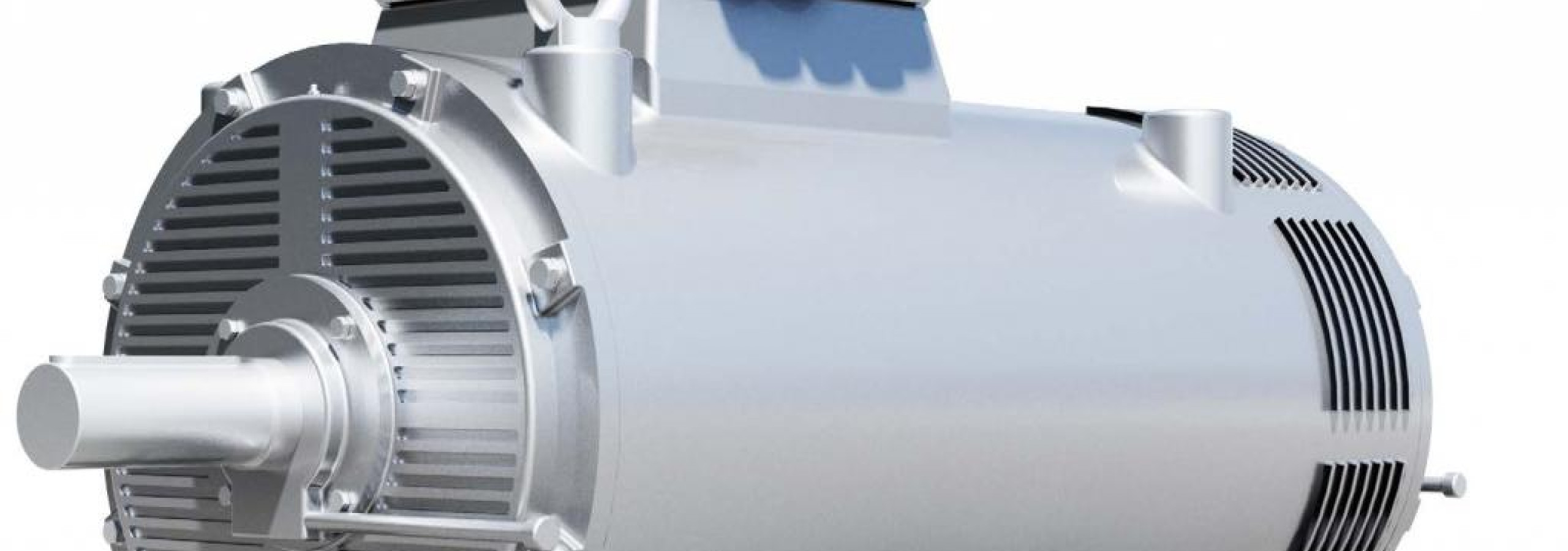

Three-phase squirrel-cage rotor IP 23

Type series "D" 11 kW to 355 kW, IE 3, IE2, IE1



Type series "D"-IP23

  • Size 160 up to size 355
  • Power: 11 up to 710 kW
  • Speed / number of poles: 3000, 1500, 1000 rpm 2, 4, 6 pol.
  • Frequency: 50 Hz
  • Cast iron, 3-phase squirrel cage induction motor
  • Efficiency class IE3, IE2, IE1 according to IEC 60034-30

Version

  • Grey cast iron, 3-phase squirrel cage induction motor
  • Efficiency class IE3, IE2, IE1 according to IEC 60034-30
  • Voltage 400/690V 50Hz | 690/1195V 50Hz | 60Hz
  • Insulation class F, IP23, TEFC IC01
  • 3 x PTC130°C & 3x PTC 150°C in winding,
  • 1 x standstill heater, from BG315: current-insulated end shield
    on B-side
  • up to BG250: external fan, from BG280 internal fan


Application:

Fans(units), drive units, pumps, crushing units, gearboxes, refrigerating machines, generators, compressors, cranes, blowers, air-conditioning units, lifting units.

Choose an option:
IE1 IE2
No filter Aluminium Grauguss
No filter 2 4 6 8
Prospekt Elektromotoren IP23
Prospekt Elektromotoren IP23
Format
S. , Din A4
Sprache
deutsch
Datei
pdf, 1.8 MB
